Tree Generator V2
How do I make an tree generator v2?

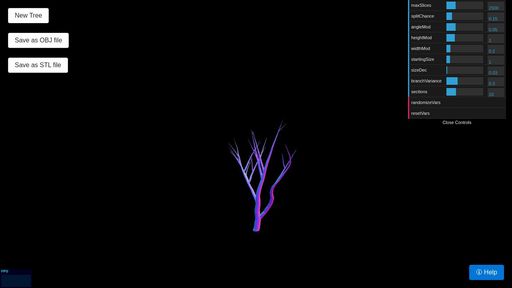

An improved version of my random-walk tree generator, now in true 3D using THREE.js. I also added a way to export to an OBJ or an SDL file courtesy of Kevin Lubick at https://gist.github.com/kjlubick. What is a tree generator v2? How do you make a tree generator v2? This script and codes were developed by Ben Matthews on 20 December 2022, Tuesday.
Tree Generator V2 - Script Codes HTML Codes
<!DOCTYPE html>
<html >
<head> <meta charset="UTF-8"> <title>Tree Generator V2</title> <link rel='stylesheet prefetch' href='https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/4.0.0-alpha.6/css/bootstrap.min.css'> <link rel="stylesheet" href="css/style.css">
</head>
<body> <div id="controls"> <button id="generate" class="btn btn-secondary" onclick="generateTree()">New Tree</button><br><br> <button id="saveOBJ" class="btn btn-secondary" onclick="exportSceneOBJ()">Save as OBJ file</button><br><br> <button id="saveSTL" class="btn btn-secondary" onclick="exportSceneSTL()">Save as STL file</button>
</div>
</div>
<div id="ThreeJS" style="z-index: 0; position: absolute; left:0px; top:30vh; height:70vh"></div> <!-- Trigger/Open The Modal -->
<button id="myBtn" class="btn btn-primary">
Tree Generator V2 - Script Codes CSS Codes
body
{ font-family: Monospace; font-weight: bold; background-color: black; margin: 0px; overflow: hidden;
}
#controls{ position:absolute; top:0; left:0; z-index:1; margin:20px;
}
.dg.ac{ position: absolute; z-index:2;
}
#myBtn{ position:absolute; bottom: 20px; right: 20px;
} /* The Modal (background) */
.modal { display: none; /* Hidden by default */ position: fixed; /* Stay in place */ z-index: 2; /* Sit on top */ left: 0; top: 0; width: 100%; /* Full width */ height: 100%; /* Full height */ overflow: auto; /* Enable scroll if needed */ background-color: rgb(0,0,0); /* Fallback color */ background-color: rgba(0,0,0,0.4); /* Black w/ opacity */
}
/* Modal Content/Box */
.modal-content { background-color: #fefefe; margin: 15% auto; /* 15% from the top and centered */ padding: 20px; border: 1px solid #888; width: 80%; /* Could be more or less, depending on screen size */
}
/* The Close Button */
.close { color: #aaa; float: right; font-size: 28px; font-weight: bold;
}
.close:hover,
.close:focus { color: black; text-decoration: none; cursor: pointer;
}
Tree Generator V2 - Script Codes JS Codes
var container, scene, camera, renderer, controls, stats;
var keyboard = new THREEx.KeyboardState();
var clock = new THREE.Clock();
var slices = 0;
var maxSlices = 2500;
var angleMod = 0.05;
var splitChance = .15;
var heightMod = 1;
var widthMod = .2;
var startingSize = 1;
var branchVariance = .3;
var sizeMod = 4;
var sizeDec = .03;
var sections = 10;
var objects = [];
var gui;
window.onload = function() { gui = new dat.GUI(); var controllers = []; controllers.push(gui.add(this, 'maxSlices', 100, 10000)); controllers.push(gui.add(this, 'splitChance', 0, 1, .01)); controllers.push(gui.add(this, 'angleMod', 0, .2, .01)); controllers.push(gui.add(this, 'heightMod', .1, 4, .1)); controllers.push(gui.add(this, 'widthMod', .1, 1, .05)); controllers.push(gui.add(this, 'startingSize', 0, 10, .01)); controllers.push(gui.add(this, 'sizeDec', .01, 1, .01)); controllers.push(gui.add(this, 'branchVariance', 0, 1, .01)); controllers.push(gui.add(this, 'sections', 3, 30, 1)); gui.add(this, 'randomizeVars'); gui.add(this, 'resetVars'); for (var i = 0; i < controllers.length; i++){ controllers[i].onFinishChange(function(){ generateTree(); }); }
};
function RW(x, y, z, size, tickOffset){ this.x = x; this.y = y; this.z = z; this.prevX = x; this.prevY = y; this.prevZ = z; this.prevSize = this.size; this.size = size; this.numTicks = tickOffset; this.speed = Math.random()*widthMod + .05; this.angle = Math.random()*2*Math.PI; this.angleMod = Math.random()*angleMod + .05; this.angleMod *= 2*Math.PI; this.geom = new THREE.Geometry(); this.update = function(){ slices++; this.prevX = this.x; this.prevY = this.y; this.prevZ = this.z; this.prevSize = this.size; this.x += Math.cos(this.angle)*this.speed*sizeMod; this.y += Math.sin(this.angle)*this.speed*sizeMod; this.z += heightMod; this.size -= sizeDec; if (this.size < 0) return; if (Math.random() < .5) this.angleMod *= -1; this.angle += Math.random()*this.angleMod; var vertices = []; for (var i = 0; i < sections; i++){ var mod = 0 if (this.numTicks%2 == 0) mod = .5; var ratio = (i+mod)/sections; var ratio2 = (i + .5 + mod)/sections; var a1 = ratio*2*Math.PI; var a2 = ratio2*2*Math.PI; vertices.push(new THREE.Vector3( (Math.cos(a1)*this.prevSize + this.prevX)*sizeMod, this.prevZ*sizeMod, (Math.sin(a1)*this.prevSize + this.prevY)*sizeMod )); vertices.push(new THREE.Vector3( (Math.cos(a2)*this.size + this.x)*sizeMod, this.z*sizeMod, (Math.sin(a2)*this.size + this.y)*sizeMod )); } var base = this.geom.vertices.length; for (var i = 0; i < vertices.length; i++){ this.geom.vertices.push(vertices[i]); } for (var i = 0; i < vertices.length; i++){ if (i%2 == 1){ this.geom.faces.push(new THREE.Face3( // base + i, base + (i+2)%vertices.length, base + (i+1)%vertices.length, base + i, )); } else { this.geom.faces.push(new THREE.Face3( base + i, base + (i+1)%vertices.length, base + (i+2)%vertices.length )); } } this.numTicks++; }
}
init();
animate();
function init()
{ scene = new THREE.Scene(); var SCREEN_WIDTH = window.innerWidth, SCREEN_HEIGHT = window.innerHeight; var VIEW_ANGLE = 45, ASPECT = SCREEN_WIDTH / SCREEN_HEIGHT, NEAR = 0.1, FAR = 20000; camera = new THREE.PerspectiveCamera( VIEW_ANGLE, ASPECT, NEAR, FAR); scene.add(camera); camera.position.set(0,150,400); camera.lookAt(scene.position); ////////////// // RENDERER // ////////////// if ( Detector.webgl ) renderer = new THREE.WebGLRenderer( {antialias:true} ); else renderer = new THREE.CanvasRenderer(); renderer.setSize(SCREEN_WIDTH, SCREEN_HEIGHT); container = document.getElementById( 'ThreeJS' ); container.appendChild( renderer.domElement ); //////////// // EVENTS // //////////// THREEx.WindowResize(renderer, camera); THREEx.FullScreen.bindKey({ charCode : 'm'.charCodeAt(0) }); ////////////// // CONTROLS // ////////////// controls = new THREE.OrbitControls( camera, renderer.domElement ); controls.autoRotate = true; /////////// // STATS // /////////// stats = new Stats(); stats.domElement.style.position = 'absolute'; stats.domElement.style.bottom = '0px'; stats.domElement.style.zIndex = 100; container.appendChild( stats.domElement ); /////////// // LIGHT // /////////// var light = new THREE.DirectionalLight(0xffffff); light.position.set(200,1000,200); scene.add(light); var ambientLight = new THREE.AmbientLight(0x111111); scene.add(ambientLight); //generate a tree: generateTree();
}
function clearScene(){ while(scene.children.length > 0){ scene.remove(scene.children[0]); }
}
function generateTree(){ slices = 0; for (var i = 0; i < objects.length; i++){ scene.remove(objects[i]); } objects = []; var rws = []; rws.push(new RW(0, 0, 0, startingSize, 0)); while(slices < maxSlices && rws.length > 0){ for (var i = rws.length-1; i > -1; i--){ rws[i].update(); if (rws[i].size < 0){ rws.splice(i, 0); continue; } if (slices < maxSlices && Math.random() < splitChance) rws.push(new RW( rws[i].x, rws[i].y, rws[i].z, rws[i].size*(Math.random()*branchVariance + (1 - branchVariance)), rws[i].numTicks%2 )); } } for (var i = 0; i < rws.length; i++){ rws[i].geom.computeFaceNormals(); // var material = new THREE.MeshPhongMaterial({color: 0xffffff}); var material = new THREE.MeshNormalMaterial(); // material.side = THREE.DoubleSide; material.perPixel = true; var object = new THREE.Mesh(rws[i].geom, material); object.name = "" + performance.now(); objects.push(object); scene.add(object); }
}
function animate()
{ requestAnimationFrame( animate ); render(); update();
}
function update()
{ // delta = change in time since last call (in seconds) var delta = clock.getDelta(); // functionality provided by THREEx.KeyboardState.js if ( keyboard.pressed("1") ) document.getElementById('message').innerHTML = ' Have a nice day! - 1'; if ( keyboard.pressed("2") ) document.getElementById('message').innerHTML = ' Have a nice day! - 2 '; controls.update(); stats.update();
}
function randomizeVars(){ for (var i = 0; i < gui.__controllers.length - 2; i++){ var controller = gui.__controllers[i]; var range = controller.__max - controller.__min; console.log(range); var value = controller.__min + Math.random()*range; if (controller.__step > 1) value = Math.floor(value); controller.setValue(value); } generateTree();
}
function resetVars(){ for (var i = 0; i < gui.__controllers.length; i++){ gui.__controllers[i].setValue(gui.__controllers[i].initialValue); } generateTree();
}
function exportSceneOBJ(){ var date = new Date(); var exporter = new THREE.OBJExporter(); var output = exporter.parse(scene); var blob = new Blob([output], {type: "text/plain;charset=utf-8"}); saveAs(blob, "Tree_" + date.getTime() + ".obj");
}
function exportSceneSTL(){ var date = new Date(); saveSTL(scene, "TreeGeneratorSTL_" + date.getTime());
}
document.body.onmousedown = function() { controls.autoRotate = false;
}
document.body.onmouseup = function() { controls.autoRotate = true;
}
function render()
{ renderer.render( scene, camera );
}
// Get the modal
var modal = document.getElementById('myModal');
// Get the button that opens the modal
var btn = document.getElementById("myBtn");
// Get the <span> element that closes the modal
var span = document.getElementsByClassName("close")[0];
// When the user clicks on the button, open the modal
btn.onclick = function() { modal.style.display = "block";
}
// When the user clicks on <span> (x), close the modal
span.onclick = function() { modal.style.display = "none";
}
// When the user clicks anywhere outside of the modal, close it
window.onclick = function(event) { if (event.target == modal) { modal.style.display = "none"; }
}
